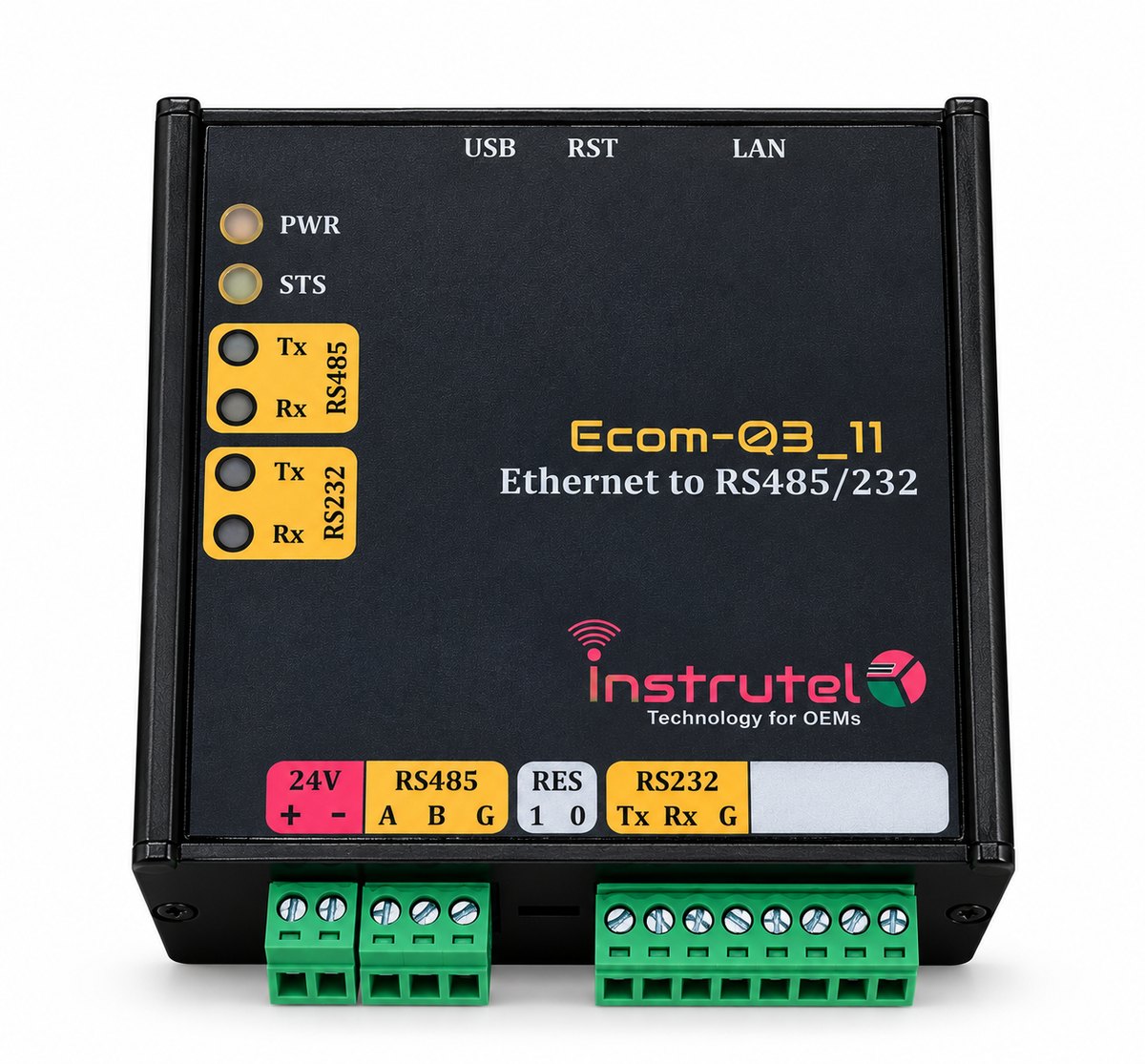

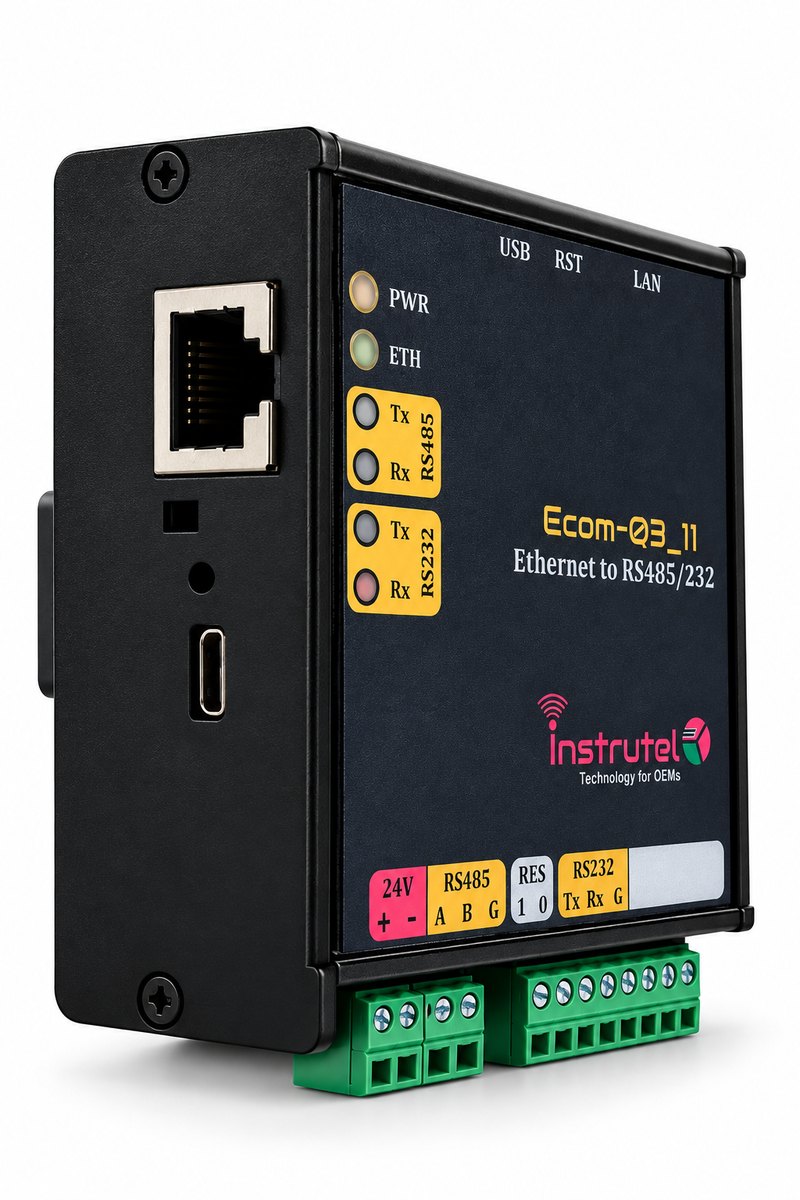

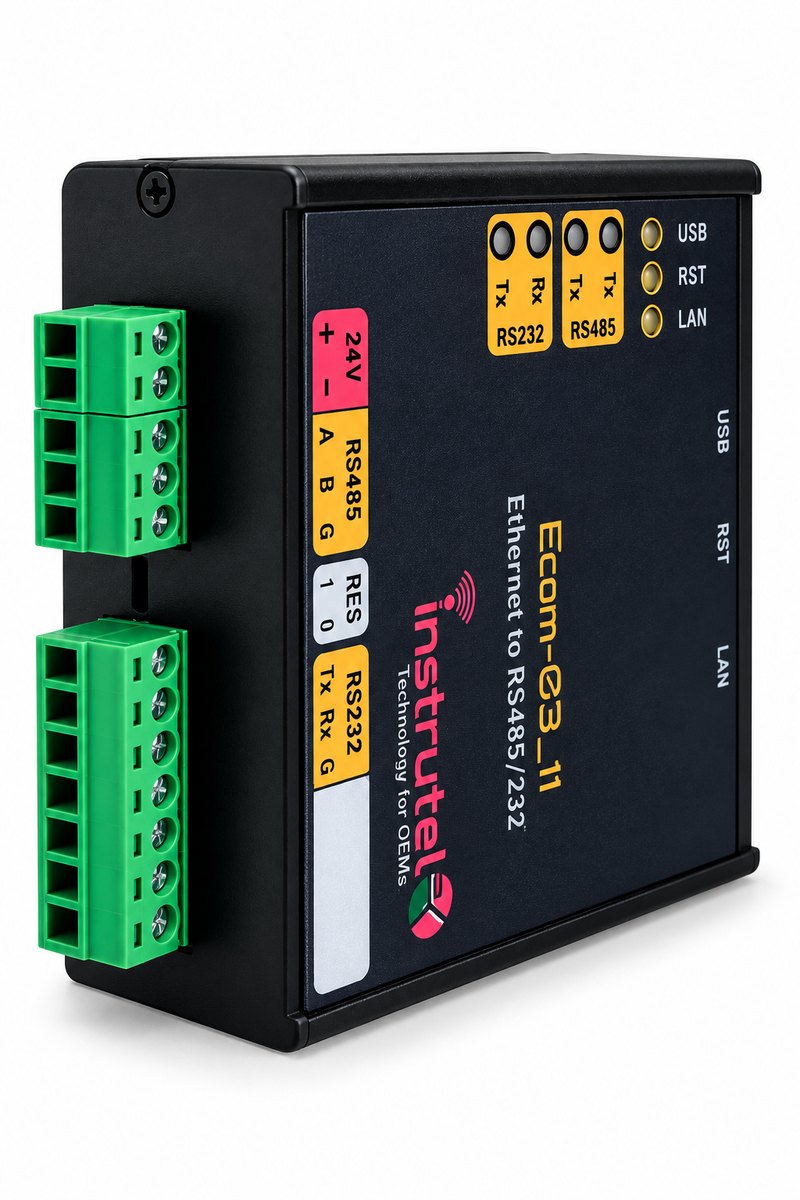

Ecom-03_11

Ethernet to isolated RS485 and RS232 converter with two independent serial channels.

EthernetRS485 / RS232Isolated

Overview

The Ecom-03_11 is an Ethernet-to-serial converter that connects isolated RS485 and RS232 devices to a 10/100 Mbps Ethernet network, with two independent serial channels, TCP Server and TCP Client modes, and a built-in web-based configuration dashboard.

Specifications

Technical specifications.

Dimensions (mm): 82.0(L) X 93.0(W) X 32.0(H)
Enclosure: Aluminium HE30
Weight: 180g
RS485: DataA(+), DataB(-), Ground (Isolation 2500VDC)
RS232: 1(Tx), 2(Rx), 3(GND)
Connector: Removable
Data Rate: RS485 - 115.2 kbps, RS232 - 200 kbps
Input Voltage: 24V DC
Operating Temperature: 0 °C to + 70 °C
Storage Temperature: -40 °C to + 85 °C
Operating Humidity: 0 to 95% (non-condensing)

Full ratings, pin mapping and wiring are in the datasheet.

Features

Connect Isolated RS485 / Isolated RS232 devices to your Ethernet port
RS485 data rate up to 115.2kbps
RS232 data rate up to 200kbps
Maximum 32 devices on RS485
Convenient, quick inline installation

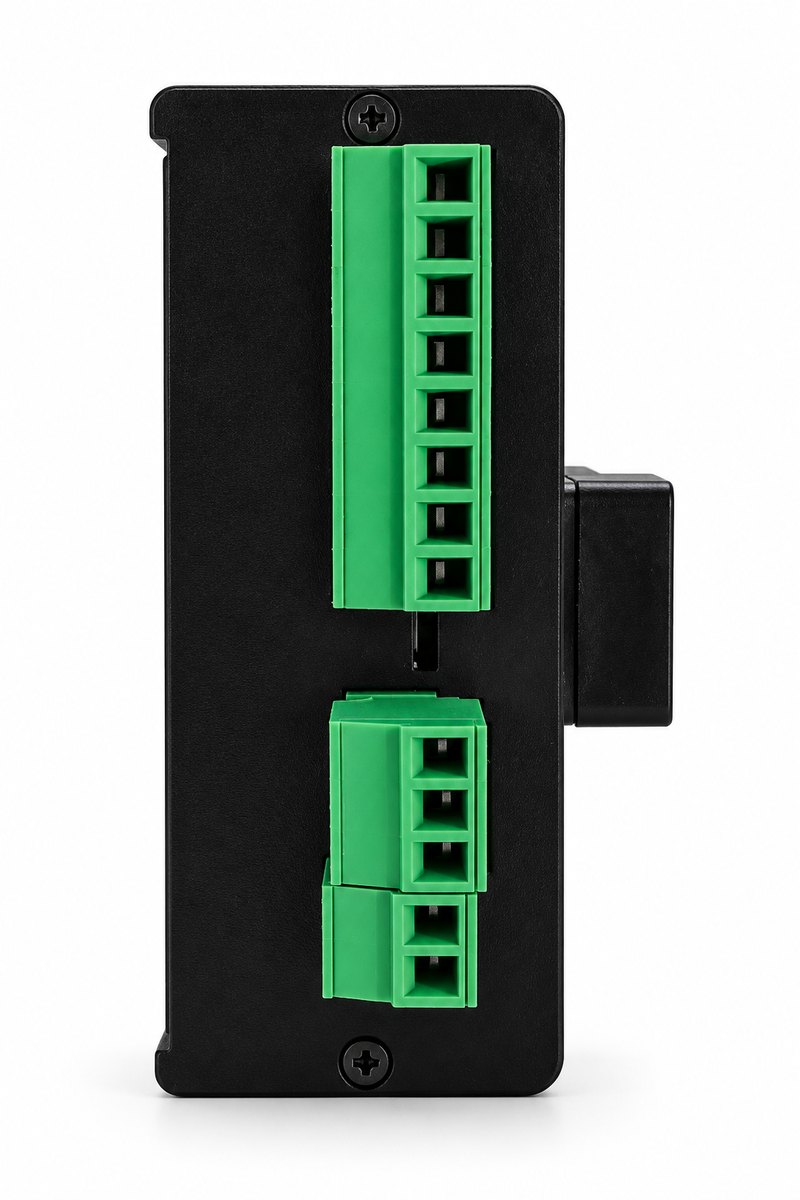

Removable terminal block for easy wiring
Two independent, simultaneously active serial channels UART1 (RS485) and UART2 (RS232)
10/100 Mbps Ethernet connectivity with support for Static IP and DHCP addressing
Built-in web-based configuration dashboard that allows device configuration without installing additional software
Independent TCP Server and TCP Client operating modes for each UART channel
Configurable baud rate, data bits, parity, stop bits, packet timeout, and maximum packet size for each UART channel
On-board status LEDs for power, device status, and UART transmit/receive activity
Device discovery and IP configuration using the companion INS Device Finder application
Maximum packet size of 1000 bytes
