INS_3200

Compact Rapid Field Deploy controller board for field automation.

RFDIS controllerField-deploy

Overview

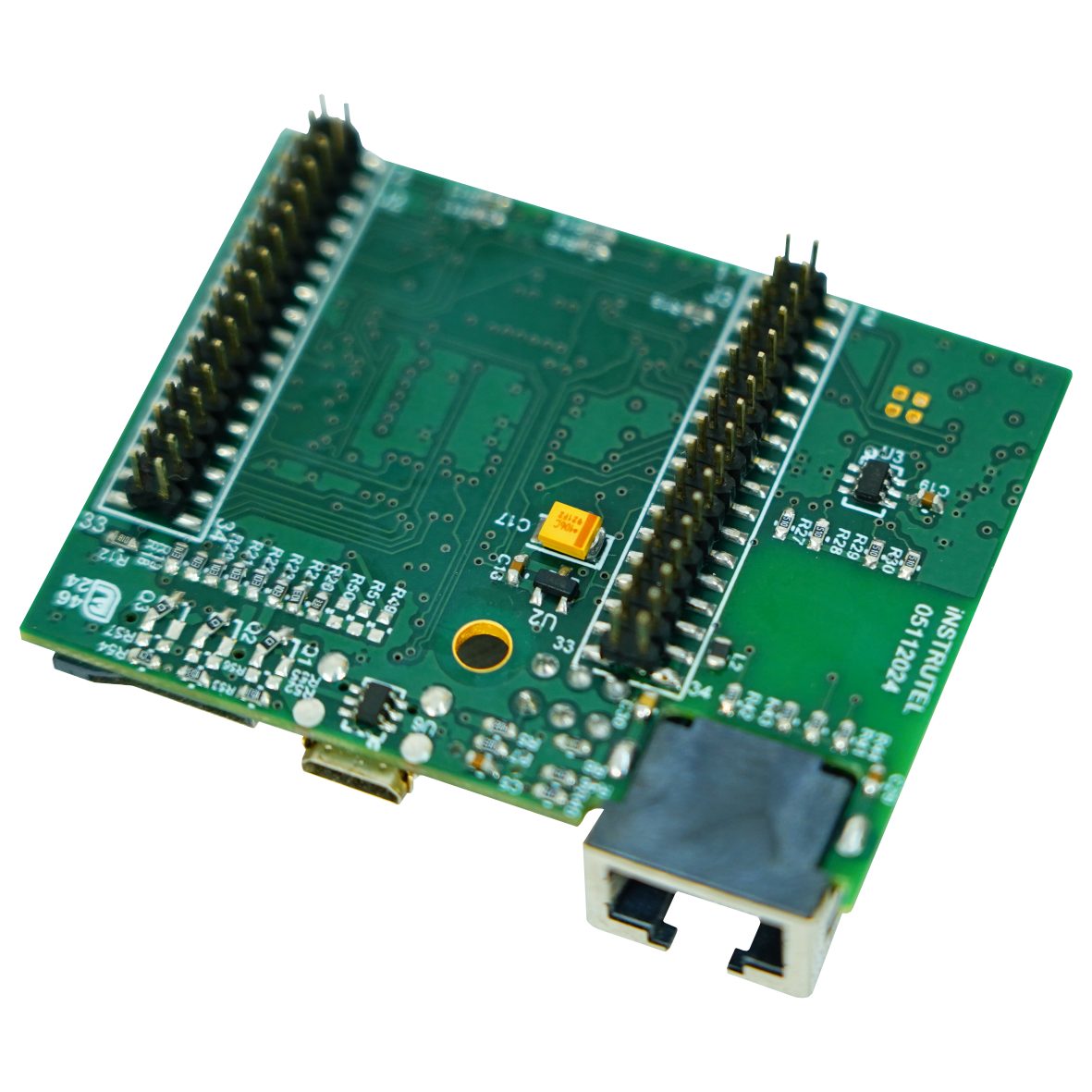

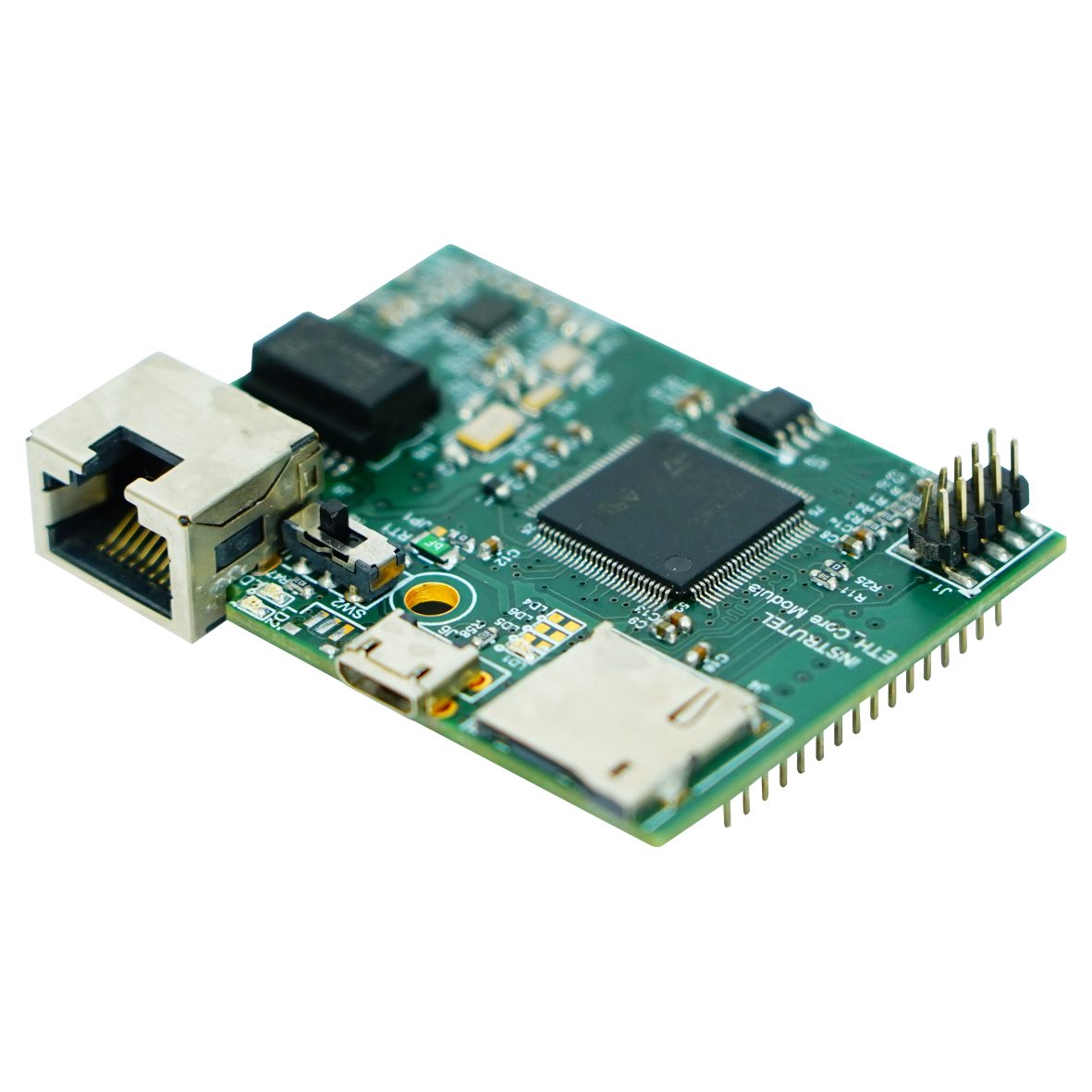

INS_3200 is a compact RFDIS controller board built for reliable field automation and industrial applications. With a high-performance STM32F407VGT6 Cortex-M4 processor and a comprehensive set of communication interfaces, it enables flexible connectivity with sensors, controllers, and industrial equipment.

Specifications

Technical specifications.

Manufacturer: STMicroelectronics
Family: STM32F4
Core: Arm Cortex-M4
Architecture: 32-bit
Max CPU Frequency: 168 MHz
FPU: Single-precision hardware FPU
DSP Support: Yes
Flash Memory: 1 MB
SRAM: 192 KB
Backup SRAM: Up to 4 KB
CCM RAM: 64 KB
Timers: Up to 16
I²C Interfaces: Up to 2
SPI Interfaces: Up to 3
USART/UART: Up to 6
USB: USB 2.0
Ethernet: 10/100 Mbps MAC
SDIO: Yes
RTC: Yes
Debug Interfaces: JTAG + SWD
Unique ID: 96-bit unique identifier

Full ratings, pin mapping and wiring are in the datasheet.

Features

STM32F407VGT6
Arm 32-bit Cortex -M4 CPU
Frequency up to 168 MHZ
Flash 1MB, RAM 192 KB
Serial wire debug (SWD)
56 GPIOs
1 x I2C interface
Upto 6 UARTs
2 SPIs
1 x CAN interface
SDIO interface
Micro USB 2.0 high-speed
10/100 Ethernet MAC (RMII)
RTC
3.3 VDC Input
Unique MAC Address
USB BOOT Selection
2mm pitch Connecter Base

Applications

Industrial Automation & Control
IoT Gateway & Edge Computing
Remote Data Acquisition & Logging
Industrial Equipment Monitoring
Sensor & Actuator Interfacing
Modbus & Serial Communication
Energy Monitoring Systems
Ethernet-Based Device Communication
Embedded System Development
Remote Field Monitoring & Control
