INS_SBC2100

8 digital inputs and 8 digital outputs

16-bit ADC for Range10/100Mbps RJ45 Interface

Overview

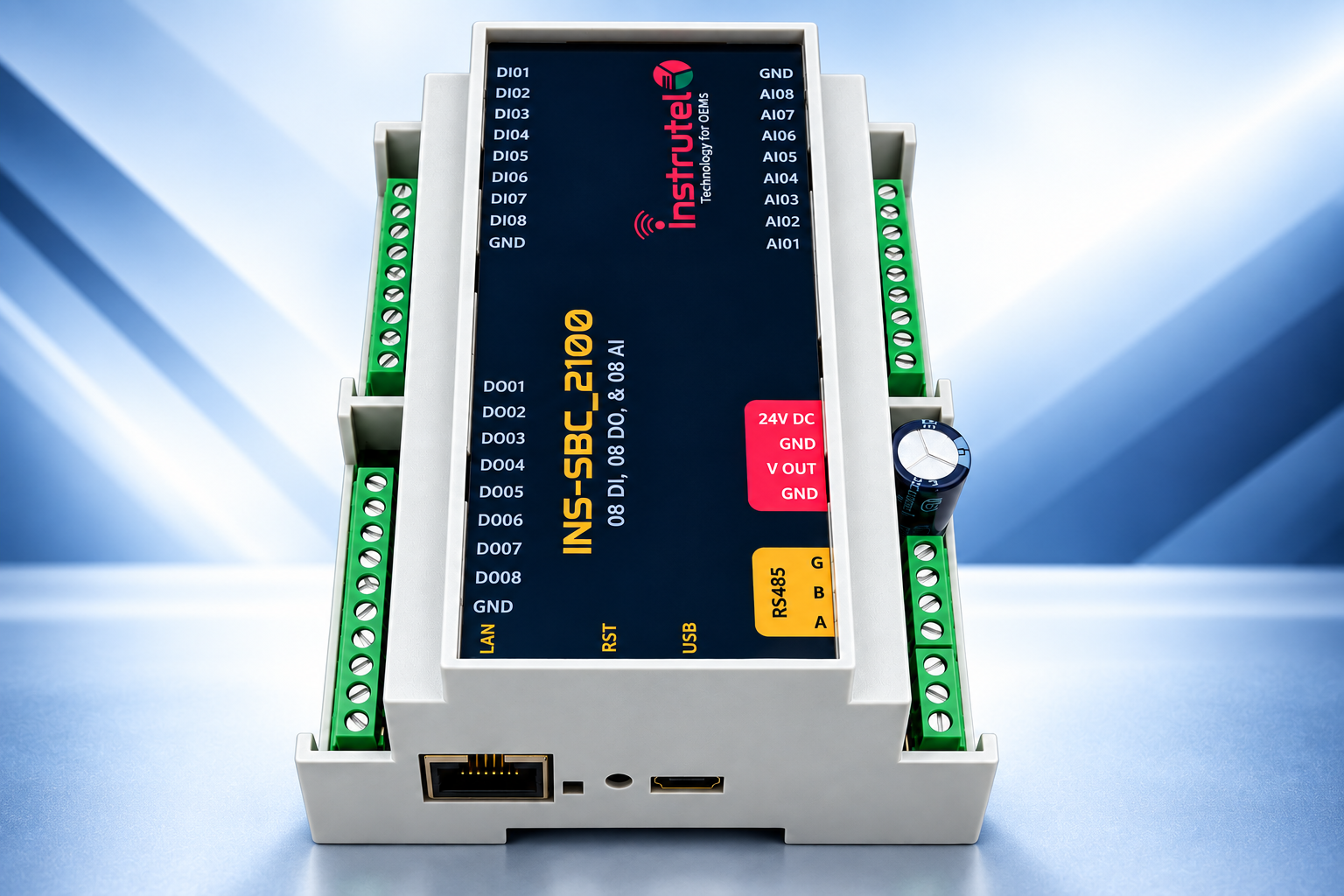

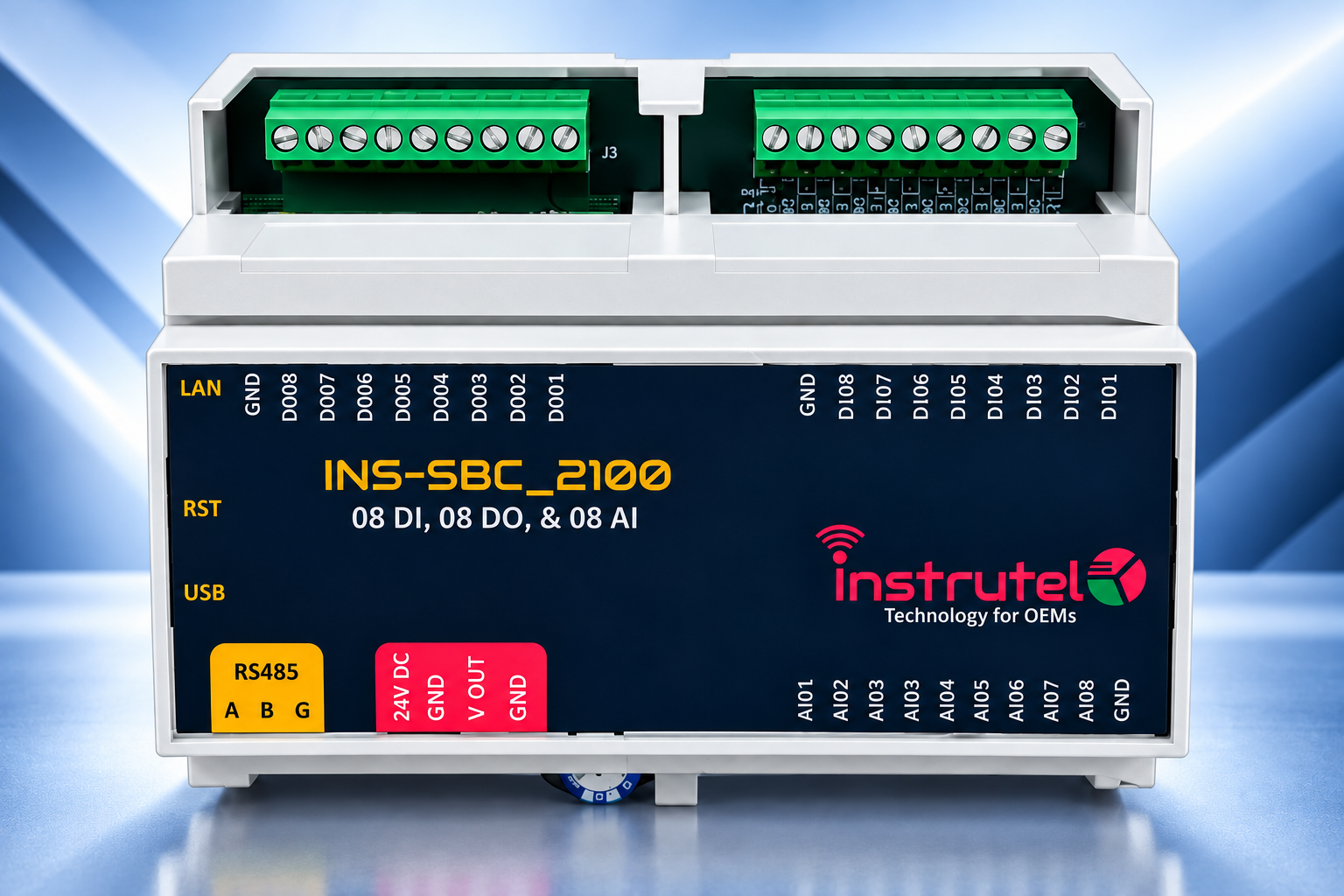

INS-SBC 2100 is a compact industrial Single Board Controller designed for real-time data acquisition, monitoring, and control in industrial automation applications. It combines 8 Digital Inputs, 8 Digital Outputs, and 8 Analog Inputs with isolated RS-485 communication and 10/100 Mbps Ethernet connectivity.

Specifications

Technical specifications.

Digital Inputs: 8 Channels
Digital Outputs: 8 Channels
Analog Inputs: 8 Channels, 16-bit ADC
Analog Range: ±10 V
Sampling Rate: Up to 200 kSps
Ethernet: 10/100 Mbps RJ45
RS485: Isolated, 115.2 kbps
RS232: Up to 200 kbps
Power Supply: 24 V DC
Power Consumption: 5 W
Isolation: 2500 VDC
Operating Temperature: 0°C to +70°C
Storage Temperature: -40°C to +85°C
Operating Humidity: 0–95% RH, Non-condensing
Dimensions: 90 × 106 × 59 mm
Enclosure: Polycarbonate
Weight: 200 g
Interfaces: UART, SPI & I²C

Full ratings, pin mapping and wiring are in the datasheet.

Features

8 Digital Inputs & 8 Digital Outputs
8-Channel Analog Inputs with 16-bit ADC
±10V Analog Input Range
Up to 200 kSps Simultaneous Sampling
Isolated RS-485 Interface
10/100 Mbps Ethernet Connectivity
UART, SPI & I²C Interface Support
Isolation & Protection Against Electrical Noise and Voltage Spikes
24V DC Industrial Power Supply
Real-Time Data Acquisition & Field Device Control

Applications

Industrial Automation & Control
Real-Time Field Data Acquisition
Pressure, Temperature, Level & Flow Monitoring
Power Meter Monitoring
Sensor Interface & Monitoring
Contactor & Solenoid Valve Control
Signal Lamp & Buzzer Control
Limit Switch & Push Button Monitoring
Proximity Sensor Monitoring
Industrial Equipment Monitoring & Control
Ethernet-Based Industrial Communication
